Hand-held 200A Micro-ohmmeter and Accessories (only NAFTA)
Bluetooth headset for audible pass/fail testing against adjustable limits
Up to 240 Amps
Battery supplied
Lightweight – 1 kg
Safe test – DualGround™
Auto range: 1 µΩ to 1000 mΩ
Bluetooth® PC communication
Complies with IEEE and IEC standards
PowerDB Lite included for Data Management and Collection

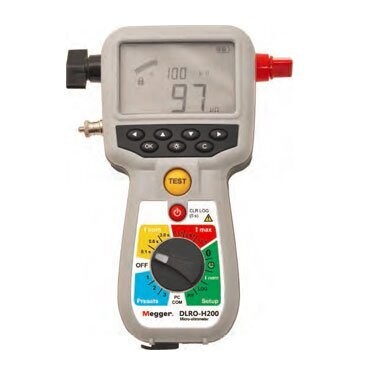

The DLRO-H200 is designed to measure the resistance of circuit breaker contacts, bus-bar joints and other high-current links. This product is designed with safety, ease of use and versatility in mind. This Micro-ohmmeter can be used anywhere to measure a low resistance value with high accuracy.
With DLRO-H200 it is possible to make measurements according to the DualGround™ method. This means that the test object will be grounded on both sides throughout the test giving a safer, faster and easier workflow.
Ruggedness and light weight make the handheld DLRO-H200 very suitable for field work, in substations and similar locations. The unit comes with a strong rubber holster that makes it extra durable. The DLRO-H200 is designed to carry out a full day of testing without recharge. It can store 190 test values and transfer test data to a PC via Bluetooth. The Bluetooth feature can also be used in conjunction with the wireless headset (supplied) to provide an audible pass/fail signal against user adjustable limits as tests are performed.
DLRO-H200 Micro-ohmmeters are supplied as standard with a copy of the PowerDB Lite software package. This intuitive software offers powerful features for storing, analyzing and archiving test results, and it supports reporting a wide range of industry standard formats. It also makes it easy to integrate results from the DLRO-H200 with results from other instruments to produce uniform reports.
